XY-TQ-B
XINYUN

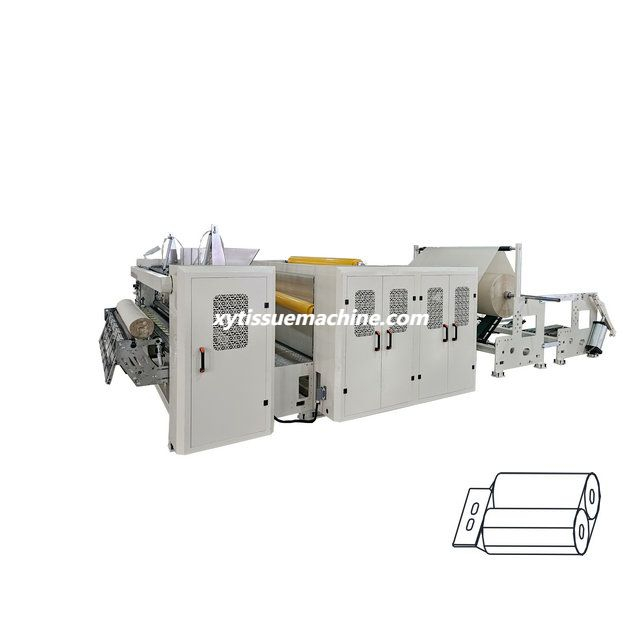

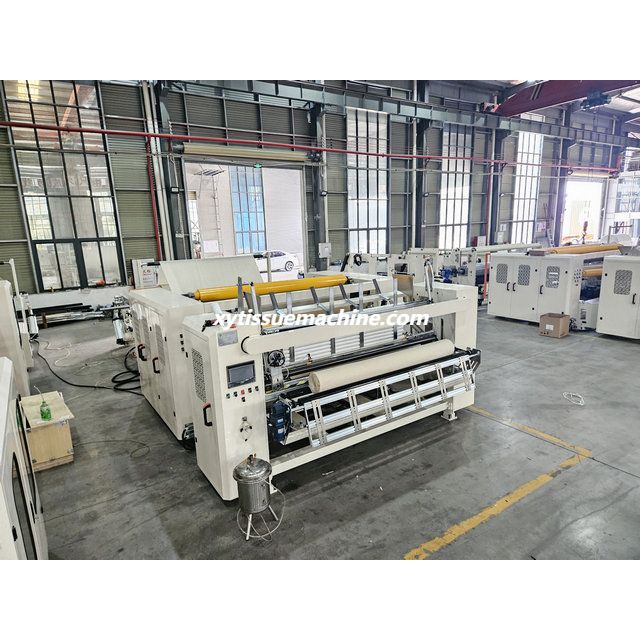

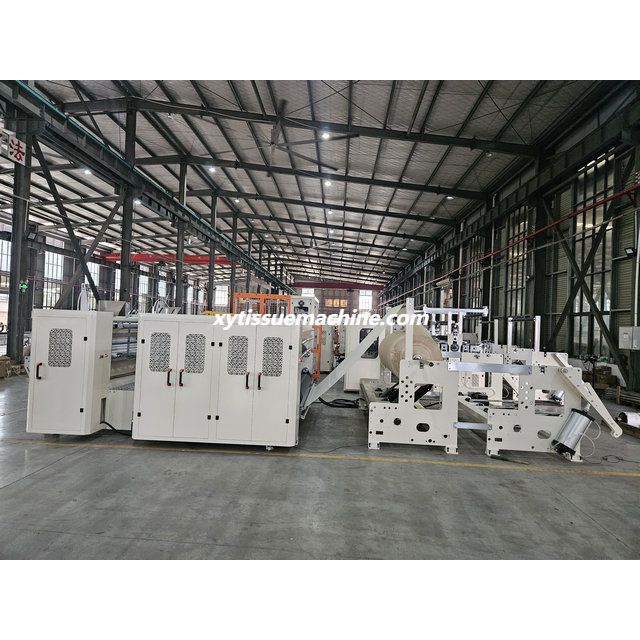

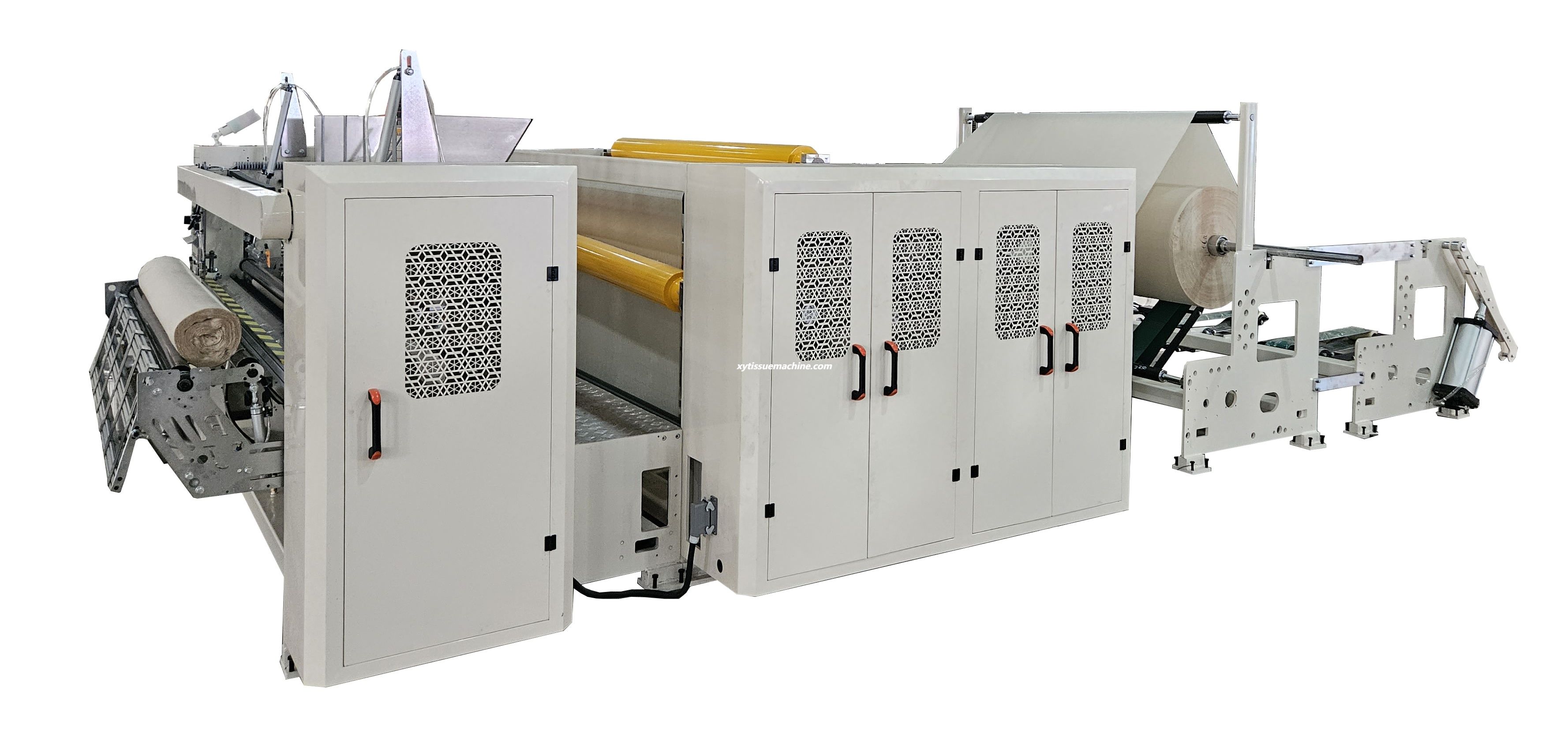

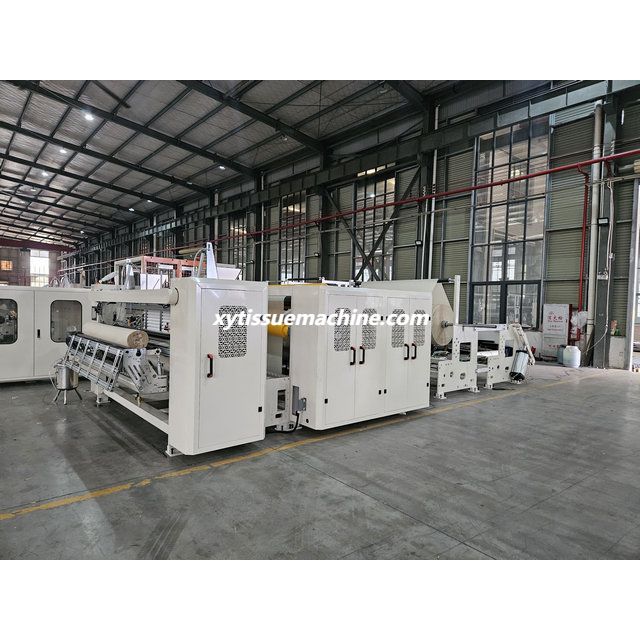

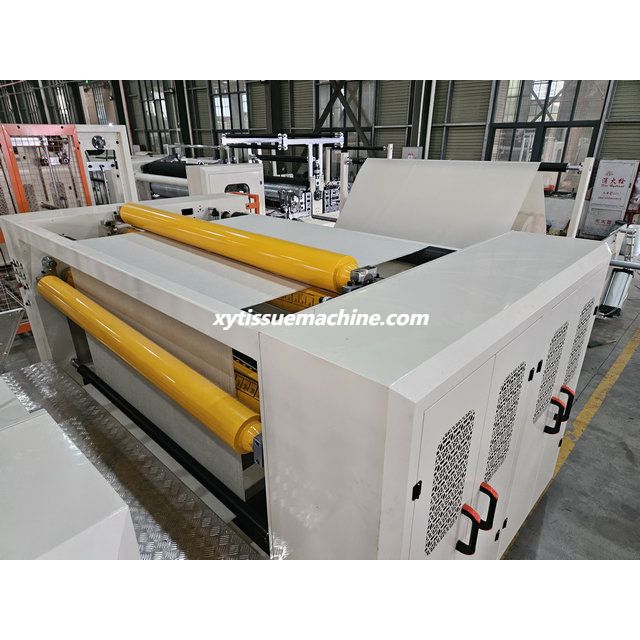

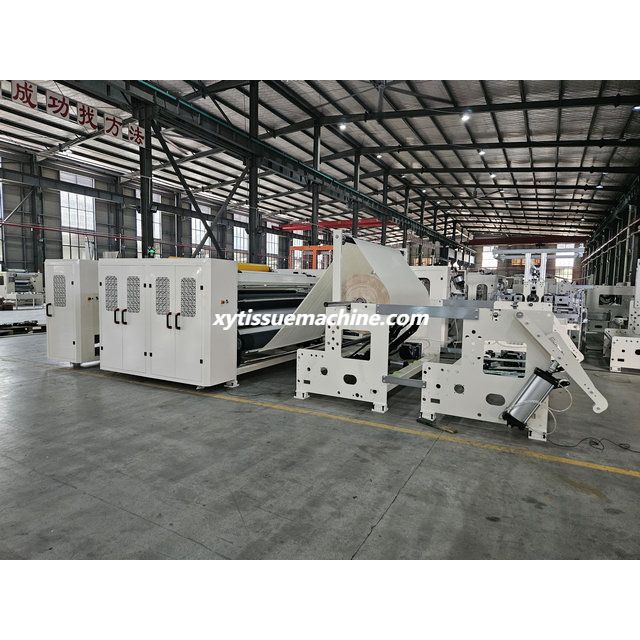

XY-TQ-B Automatic Two Perforating Systems
Toilet Paper Kitchen Towel Making Machine
High Speed Automatic Two Perforating Systems Toilet Paper Kitchen Towel Rewinder
The machine turns jumbo rolls into finished rolls at 200–230 m/min. A 20 mm steel wall frame kills vibration, keeping every cut dead-straight whether you’re running 90 mm bath rolls or 300 mm kitchen towels.
Two independent perforation modules sit side-by-side. Switch from toilet-paper micro-perfs to kitchen-towel long tears in seconds—no tooling, no downtime.
Hands-free workflow
Auto core feed, edge trim, tail seal and glue lamination run under a single PLC recipe. Change roll size, tension or line speed from the touchscreen; the machine does the rest.
Built for scale, ready for specialty
High volume or custom emboss-patterns, the line keeps waste low and quality high—exactly what modern tissue converters demand.
Product Features
Velocity & Precision in One Frame
• 200–230 m/min top speed slashes cycle time without sacrificing cut accuracy.
• Roll diameter 90–300 mm dialed from the same recipe—no mechanical swap-outs.
Auto core loader feeds, edge knives trim, and tail seal glues in a single pass—hands stay off the line, scrap stays near zero.
Tailor-Made on Demand
Add glue-lamination, color print bars, even fragrance dosing—each module plugs in without rewiring.
Smart Command Center
PLC with HMI remembers 99 recipes, flags faults in plain language, and lets new operators hit target speed in minutes.
Data Sheet
Model | XY-TQ-B |
Jumbo Roll Max Width | 1350-2800mm (Other size can be specified) |
Jumbo Roll Diameter | 1150mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（90-140mm） 2 anvil Blades（180-280mm） |
Finished Product Diameter | 90~300mm |
Finished Product Core Diameter | 38~76mm |
Production Speed | 200~230m/min |
Program Controller | PLC(INVT brand) |
Unwind Stands | 2 Stands |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa |
Main Power | 14KW 380V 50HZ |
Dimension | 7000*4000*1900(L*W*H) |
Weight | About 7T |
Edge-Line Embossing | Steel to steel (Pneumatic Control) |
Full Embossment | Steel to rubber. |
Function
Machine has core feeding unit.
Raw material from jumbo roll after embossing, perforation, end cutting and sprayed the tail glue to become a log roll.
Optional Function
1. Glue Lamination System
Point to Point Glue Lamination Style
Deco Embossing Glue Lamination Style
2. Non Stop Log Roll Accumulator for Glue Lamination System
3. Color Printing System
Production Line
Automatic rewinding machine can work with cutting machine and packing machine to become the finished products.
1) If the finished product is toilet paper roll with diameter 90-120mm, then please check below production line:
XY-TQ-A-G Semi Automatic Toilet Paper Machine Production Line
Video Link: https://youtu.be/SYuq8fvhCaw
There are 3 machines in this production line.
1. XY-TQ-B Full automatic toilet paper making machine
2. XY-AI-400 Automatic toilet paper band saw cutting machine
Cutting diameter:90-140mm
3. XY-AI-398A Semi automatic multi rolls packing machine with conveyor belt
2) If the finished product is kitchen towel roll with diameter 150-300mm, then please check below production line:
Automatic Maxi Roll Kitchen Towel Machine Production Line
Video Link: https://youtu.be/vFcs0SbxPzY
There are 3 machines in this production line.
1) XY-TQ-B Full Automatic Toilet Paper Making Machine
2) XY-AI-500 Automatic Maxi Roll Band Saw Cutting Machine
Cutting diameter: 150-280mm
3) XY-TN-269 Automatic Maxi Roll Shrink Packing Machine with Auto Label Function
