Ever stopped to consider the journey of that humble roll gracing your bathroom? While toilet paper seems simple, its transformation from raw materials to the soft, strong, and perfectly perforated product we rely on is a marvel of modern industrial engineering. For centuries, papermaking was a laborious craft. Today, it's a symphony of high-speed, precision machinery operating on a colossal scale, producing thousands of rolls per minute to meet global demand. Understanding this complex process and the specialized equipment involved is crucial for anyone in the tissue industry, from suppliers to potential buyers of manufacturing lines. This intricate dance of machines ensures consistent quality, efficiency, and the specific characteristics consumers expect. Let's peel back the layers and explore the world of toilet paper production technology.
The journey from wood pulp or recycled fiber to the finished toilet paper roll involves a sophisticated sequence of specialized machinery, primarily encompassing pulping systems, massive paper machines (specifically tissue machines with Yankee dryers), converting lines for rewinding, embossing, perforating, log sawing, and core insertion, and finally, packaging systems. Each stage employs distinct technologies working in concert to achieve the desired softness, strength, absorbency, and presentation.
The very first stage sets the stage for the final product's quality. Whether starting with virgin wood chips or recycled paper bales, powerful machines break down these materials into the fibrous slurry that forms the basis of the tissue.
Raw Material Handling: This begins with heavy-duty equipment like forklifts, conveyors, and bale breakers. For virgin pulp, wood chips are fed into massive digesters – essentially giant pressure cookers. Using chemicals (in the Kraft process) or mechanical means, digesters break down the lignin binding the wood fibers. Recycled paper undergoes a different initial process in pulpers: large vats filled with water and agitation systems that vigorously separate individual fibers from contaminants and ink.
Cleaning and Refining: The resulting pulp slurry, whether from virgin or recycled sources, contains impurities like sand, plastics, staples, or undigested chips. A series of screens, centrifugal cleaners, and flotation cells act like industrial filters, meticulously removing these unwanted elements. Refiners then come into play. These machines consist of rotating discs with patterned surfaces that gently brush and fray the fibers. This refining step is critical – it increases the surface area and flexibility of the fibers, directly influencing the final sheet's softness and bonding potential.
Bleaching (Optional but Common): To achieve the bright white color consumers often expect, pulp may undergo bleaching. While modern processes focus on elemental chlorine-free (ECF) or totally chlorine-free (TCF) methods for environmental reasons, the machinery involves controlled mixing tanks and reaction vessels where bleaching chemicals interact with the pulp under specific temperature and pH conditions.
Stock Preparation: Before the pulp reaches the paper machine, it undergoes final preparation in the stock preparation area. Here, various pulps (e.g., softwood for strength, hardwood for softness) are blended in precise ratios. Additives like wet strength resins, dry strength agents, or softeners are meticulously metered and mixed into the slurry. Dilution water is added to achieve the exact consistency needed for forming the sheet. High-consistency pulp pumps then transport this prepared stock to the paper machine's headbox.
This is where the magic of sheet formation happens at breathtaking speeds, often exceeding 60 mph. The tissue machine is a complex, continuous operation where the watery pulp slurry is transformed into a dry, creped tissue web.
The Headbox: This precision-engineered component is the starting point on the machine. It acts like a distributor, ensuring the pulp slurry flows uniformly across the full width of the machine. It controls the velocity and turbulence of the flow, critical for achieving consistent sheet formation and basis weight.
The Forming Section: The furnish jets out of the headbox slice onto the forming fabric. Traditionally, Fourdrinier formers were used, but for tissue, the gap former (like a Crescent Former) is dominant. In a Crescent Former, the furnish is deposited directly into the "nip" between the forming fabric and a large felt running around a roll. Water drains rapidly through the fabric via gravity, vacuum boxes, and foils, leaving a fragile web of fibers on the fabric's surface. The design promotes excellent formation and bulk – key for softness.
Press Section (Modified for Tissue): Unlike standard paper machines, tissue machines often have a very minimal press section or sometimes omit it entirely to preserve bulk and softness. If present, it usually consists of a single, wide-nip press roll pressing the web against the massive Yankee dryer cylinder, aided by a special press felt. The goal is gentle dewatering without compacting the sheet.
The Yankee Dryer: This is the iconic, defining component of a tissue machine. It's a massive, highly polished, steam-heated cylinder, often 12-18 feet in diameter. The wet tissue web is pressed onto its hot surface (using a pressure roll in the press nip). As the Yankee rotates at high speed, the intense heat rapidly evaporates the remaining water in the web, drying it almost instantly. A crucial chemical, a release agent (like polyamide-epichlorohydrin), is sprayed onto the Yankee surface to prevent the dry sheet from sticking permanently.
Creping Doctor Blade: This is where tissue gets its characteristic softness and bulk. As the dry sheet leaves the Yankee dryer, a creping doctor blade scrapes it off the cylinder. This action causes the sheet to buckle and micro-fold, creating the crepe structure. The crepe pattern (fine or coarse) is controlled by the blade's angle, the adhesive/release chemistry on the Yankee, sheet moisture, and speed. This creping drastically increases the sheet's bulk, softness, stretch, and absorbency – the hallmarks of quality toilet paper.

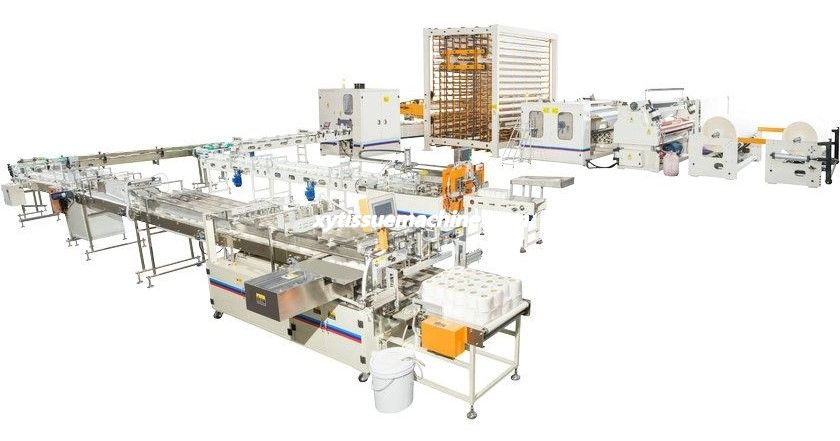

The dry, creped tissue web leaving the Yankee is wide and miles long. The converting line is a high-speed marvel that transforms this jumbo parent roll into the familiar, perforated, embossed, core-wound rolls ready for packaging.
Rewinding: The process starts with unwinders that handle the large parent rolls from the tissue machine. The web is then fed through a series of guide rolls and tension control systems into the rewinder. This toilet paper rewinding machine slits the wide web into multiple narrower webs corresponding to the desired roll width. It then winds these webs simultaneously onto long cardboard tubes (called "logs"), ensuring precise tension control for consistent roll firmness and diameter.
Embossing and Perforating: To enhance aesthetics, softness, ply bonding (for 2-ply or more), and functionality, the tissue webs often pass through embossing rollers before winding. These steel rollers have engraved patterns that press designs into the sheet. Perforating blades are precisely timed rotating knives that create the tear lines between sheets. These operations can occur before the rewinder or be integrated into it.
Log Sawing: The continuous tissue logs produced by the rewinder are far too long for consumer use. High-speed, automated log saws cut these long logs into the required individual roll lengths (e.g., 4", 5", 6" long rolls) with extreme precision. Sawdust extraction systems are vital here.
Core Insertion (for Coreless Rolls): For coreless rolls, a specialized process inserts a small, dissolvable or flushable paper core during the log winding stage on the rewinder. This core provides the initial structure for winding but disintegrates during use.
Tail Sealing: Before rolls are packaged, the loose tail end needs to be secured. This is often done using glue dots or ultrasonic sealing equipment integrated into the log saw or packaging line, ensuring the roll stays neatly wound.
Getting the individual rolls into boxes or bundles efficiently and attractively is the final critical step, heavily reliant on automation.
Counting and Grouping: Optical sensors and robotic arms count the individual rolls exiting the log saw and group them into the required quantities (e.g., 4-roll packs, 12-roll bundles, 48-roll cases).
Wrapping/Bagging: Rolls or bundles are automatically wrapped in plastic film (polyethylene or biodegradable alternatives) using flow wrappers or bundling machines. This protects the product from dust, moisture, and damage during transport and storage. Machines apply labels with product information and branding during this stage.
Case Packing: For larger shipments, wrapped bundles are automatically collated and inserted into cardboard cases or trays. Case erectors form boxes from flat blanks, and case sealers apply glue or tape to securely close them.
Palletizing: Filled cases are robotically stacked onto pallets in stable, interlocking patterns by high-speed palletizers. The pallets are then stretch-wrapped or shrink-wrapped for secure transport.
Automation and Control: Throughout the entire process, from pulping to palletizing, sophisticated Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs) monitor and control every parameter – speeds, temperatures, pressures, chemical dosages, counts. Sensors constantly feed data, ensuring consistent quality, minimizing waste, and optimizing efficiency. Robotics play an increasingly vital role in material handling, especially in packaging.
Maintaining the high standards expected in the toilet paper market requires rigorous, continuous quality control integrated throughout the manufacturing process.
Online Sensors: Modern tissue machines and converting lines are equipped with numerous online sensors. Basis weight (grammage) scanners, moisture gauges, caliper (thickness) sensors, colorimeters, and cameras constantly monitor the web's properties as it moves at high speed. This real-time data feeds back to the control systems for immediate adjustment.
Laboratory Testing: While online sensors provide continuous data, offline lab testing remains crucial. Samples are regularly taken and tested for key properties: tensile strength (dry and wet), absorbency rate and capacity, softness, brightness, basis weight, caliper, and sheet count. Core compression and roll firmness are also critical for the final product.
Process Control: Quality control isn't just about testing the final product; it's about controlling every step of the process. This includes monitoring pulp quality, refining levels, chemical additive rates, Yankee dryer temperatures and steam pressures, creping doctor conditions, embossing pressures, rewind tensions, and glue application. Statistical Process Control (SPC) methods are widely used to identify trends and prevent deviations.
Defect Detection: High-resolution vision systems on the converting line scan for defects like holes, tears, discoloration, misperforations, incorrect embossing, or misaligned printing. These systems can automatically trigger reject mechanisms to remove faulty rolls or bundles from the line.
Supplier Quality Management: Ensuring the quality of incoming raw materials (pulp, chemicals, cores, packaging materials) is equally important. Rigorous supplier qualification and incoming inspection protocols are essential.
The journey from raw fiber to a packaged toilet paper roll is a testament to the power and precision of modern industrial machinery. It's not a single machine, but an integrated system: pulpers and cleaners prepare the foundation, the specialized tissue machine with its Yankee dryer and creping blade creates the unique sheet properties, and the high-speed converting line transforms the web into finished rolls with remarkable efficiency. Underpinning it all is sophisticated automation and rigorous quality control, ensuring every roll meets the demanding standards of strength, softness, and reliability. For businesses involved in manufacturing or supplying this essential product, understanding this machinery ecosystem is key to optimizing production, improving product quality, and making informed investment decisions. Investing in advanced, efficient, and well-maintained machinery is fundamental to success in the competitive tissue market.
Q: What is the typical lifespan of a major toilet paper manufacturing machine?
A: With proper maintenance and upgrades, core machines like tissue machines and major converting lines can have operational lifespans of 25-40 years or more.
Q: Are there significant differences in machinery for virgin pulp vs. recycled content toilet paper?
A: The core paper machine and converting line are similar, but recycled production requires more extensive pulping, cleaning, and deinking equipment upstream to handle contaminants.
Q: What are the key energy consumers in the toilet paper manufacturing process?
A: The Yankee dryer (steam heating) and the paper machine's vacuum systems are typically the largest energy consumers, followed by stock refining and the motors driving the entire line.
Q: How important is automation in modern toilet paper plants?
A: Automation is critical for achieving the high speeds, consistent quality, safety standards, and cost-efficiency required in modern, large-scale tissue manufacturing.
Q: What certifications should machinery for toilet paper production have?
A: Key certifications include CE Marking (EU), UL/CSA (North America), and often specific safety standards like ISO 13849 for machinery safety, alongside quality management standards like ISO 9001 for the manufacturer.
